Grooving Tools for Heavy Duty

High feed grooving insert with various holders for heavy duty.

TAG HF breaker

×
Adapters with 5 pockets
×

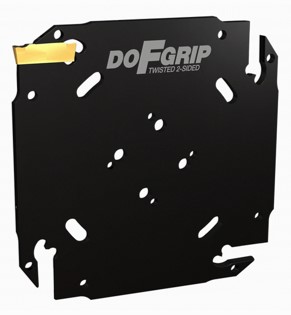

Large diameter grooving adapter

Various types of unique grooving holder

  • High feed insert

    TAG N3HF (3mm width)
    TAG N4HF (4mm width)
    TAG N5HF (5mm width)

  • 5 pockets adapters
    Maxmum processing diameter: Φ45

    ADMP D45-2.0 (For 2mm width)
    ADMP D45-3.0 (For 3mm width)

  • Product video

  • TGTBQ holder

    20mm square shank to 32mm square shank are available.

  • DGAQ-JHP adapter

    Maxmum diameter: Φ50 to 120
    For DCN insert (double sided insert)

  • TGAQ-JHP adapter

    Maxmum diameter: Φ50 to 120
    For TAG insert (single ended insert)






Machining test videos

  • TAG N3HF insert and ADMP adapter

    Cutting condition: Vc=150m/min, Feed=0.5mm/rev

  • Parting of squere bar

    Cutting condition: Vc=150m/min, Feed=0.35mm/rev
    High feed is available even at heavy duty.

Recommended cutting condition

Please refer Iscar web site for more detail.

TAG HF breaker：
https://www.iscar.com/eCatalog/Family.aspx?fnum=4304&mapp=TG&GFSTYP=M
ADMP adapter：
https://www.iscar.com/eCatalog/Family.aspx?fnum=4218&mapp=TG&app=0&GFSTYP=M&fr=1
TGTBQ holder：
https://www.iscar.com/eCatalog/Family.aspx?fnum=4447&mapp=TG&app=0&GFSTYP=M&fr=1
DGAQ adapter：
https://www.iscar.com/eCatalog/Family.aspx?fnum=4450&mapp=TG&app=0&GFSTYP=M&fr=1
TGAQ adapter：
https://www.iscar.com/eCatalog/Family.aspx?fnum=4451&mapp=TG&app=0&GFSTYP=M&fr=1
Appealing sales points and object candidates of changing

  • High cutting resistance machining

    High cutting resistance machining is available due to the design that emphasizes cutting edge strength.

  • Square bar processing

    For heavy interrupted cutting condition.

  • Various types of holder and adapter

    General holders can also attach in addition to the introduction above.
